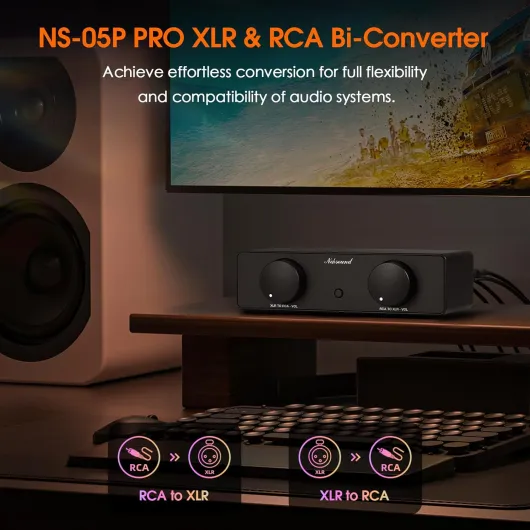

HiFi XLR RCA Converter: Bi-Directional Balanced Audio Adapter with Independent Volume Control USB-C Powered for Home Studio, Amplifier, Preamplifier, Active Speaker (NS-05P PRO)

• ＋ Bi-Directional audio transfer
• ＋ Independent Volume Control
• ＋ USB-C Powered
• ＋ Compatible with Home Studio equipment
• ＋ Works with Amplifiers, Preamplifiers, and Active Speakers

Faqs

• q: is the rca-to-xlr conversion on the ns-05p pro a true balanced output?
  a: yes. the ns-05p pro features a fully differential design, delivering a true balanced signal when converting from rca to xlr.
• q: can the ns-05p pro operate both rca-to-xlr and xlr-to-rca paths simultaneously?
  a: yes. the two signal paths are fully independent, allowing both conversions to function at the same time without interference.
• q: why is the ns-05p pro not working?
  1. the ns-05p pro is an active converter and requires a dc 5v (≥1a) power supply to function properly. please check if the power supply works well.
  2. please ensure the rca and xlr ports are connected correctly: left half: rca input → xlr output; right half: xlr input → rca output. the ns-05p pro does not support rca-to-rca or xlr-to-xlr connections. incorrect connections will result in no signal output.
• q: why does the output volume of ns-05p pro differ in rca-to-xlr and xlr-to-rca modes?
  a: when the volume knob is turned to maximum, xlr-to-rca mode provides the maximum gain of +5db, resulting in a louder output. in rca-to-xlr mode, the maximum gain is 0 db.
• q: what should i do if i hear hum or background noise when using the ns-05p pro?
  a: please use a wire to connect the gnd on the ns-05p pro to a real earth ground or to the metal chassis of another equipment. if the issue persists, please contact us for further assistance.

Parameters

• brand: nobsound
• model: ns-05p pro
• audio input: rca / xlr
• audio output: xlr / rca
• work modes: rca in → xlr out / xlr in → rca out
• power required: yes
• gain: xlr → rca: 5db, rca → xlr: 0db
• thd+n: 0.008%
• thd: 0.00007%
• snr: ≥89db
• channel balance (l/r): ≤0.01db
• frequency response: 20hz-20khz
• input impedance: 20kω
• output impedance: 100ω
• rca output level: 2vms (max)
• separate volume control: supported
• input voltage: dc 5v (≥1a)
• power interface: usb type-c
• dimensions (w*d*h): 155*70*42mm / 6.10*2.76*1.65in
• net weight: 420g / 0.92lb
• package weight: 600g / 1.32lb

Packing list

• ns-05p pro converter ×1
• usb cable ×1
• user manual ×1

• Bi-Directional RCA & XLR Converter: Seamlessly transforms RCA (unbalanced) to XLR (balanced) and XLR to RCA. It's the perfect solution for bridging consumer Hi-Fi gear with professional audio equipment, in either direction.

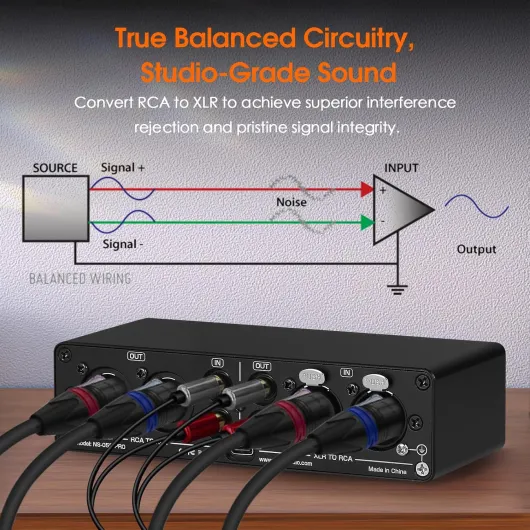

• True Balanced Circuitry for Pristine Sound: Upgrades your RCA signal to true balanced XLR. It eliminates unwanted electrical hum, buzz, and ground loop noise that contaminates your sound. Enjoy a cleaner, more detailed sound with improved signal integrity.
• Dual-Path with Independent Control: The two conversion paths are fully independent and can operate simultaneously without interference. Each features its own volume knob, acting as a mini-preamp for precise level matching between your components.
• Complete Audio Compatibility: Effortlessly integrate devices such as mixers, audio interfaces, active studio monitors, power amplifiers, DACs etc., ensuring stable, high-quality signal transmission for both home stereo setups and advanced audio systems.
• Premium Aluminum Build: Crafted from a solid, compact aluminum chassis, the NS-05P PRO not only fits your desk but also provides robust shielding. It effectively blocks external interference, guaranteeing pure signal for Hi-Fi listening.
