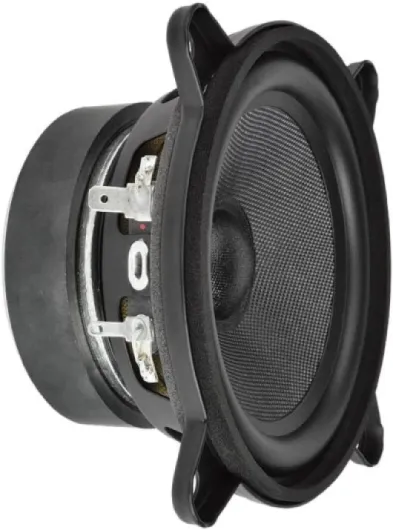

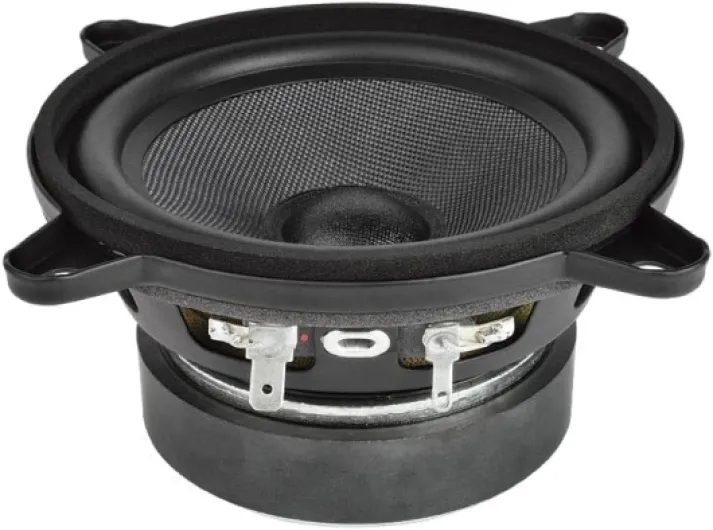

FAITAL PRO 4FE35-4 4-inch Mid Bass Woofer 4-Ohms Compact Full-Range Loudspeaker Audio Speaker Applications 30-Watt Rms 60-Watt Max

• ＋ Compact design
• ＋ 4-Ohms impedance
• ＋ 30-Watt RMS power
• ＋ 60-Watt Max power
• ＋ Full-range speaker

The Faital Pro 4FE35-4 is a compact full-range loudspeaker. This speaker is known for its flat response across a wide frequency range, making it suitable for various audio applications where space is limited and high-quality sound is required.

Nominal specifications

• Nominal diameter: 100 mm (4 in)
• Overall diameter: 129.85/100.5 mm (5.11/3.96 in)
• Bolt circle diameter: 115.26 mm (4.54 in)
• Baffle cutout diameter: 91.5 mm (3.60 in)
• Depth: 49.8 mm (1.96 in)
• Flange and gasket thickness: 7.2 mm (0.28 in)
• Net weight: 570 g (1.3 lb)
• Shipping box (single carton box - 8 units): 225 x 225 x 150 mm (8.9 x 8.9 x 5.9 in)
• Shipping box (single carton box per unit): 1.9 x 1.9 x 0.74 in
• Shipping weight (8 units): 5 kg (11.0 lb)
• Shipping weight (per unit): 1.38 lb

Technical parameters

• Nominal impedance: 4 Ohm
• Minimum impedance: 3.7 Ohm
• AES power handling (1): 30 W
• Maximum power handling (2): 60 W
• Sensitivity (1W/1m): 91 dB
• Frequency range: 90÷20000 Hz
• Voice coil diameter: 19 mm (0.75 in)
• Winding material: Al
• Former material: Kapton
• Winding depth: 4.8 mm (0.19 in)
• Magnetic gap depth: 4 mm (0.16 in)
• Flux density: 1.1 T
• Magnet: Ferrite ring
• Basket material: Steel
• Demodulation: Copper cap
• Cone surround (3): Half roll
• Net air volume filled by loudspeaker: 0.150 dm³ (0.005 ft³)
• Spider profile: 1x constant height waves

Thiele and small parameters

• Fs: 100 Hz
• Re: 3.3 Ohm
• Qes: 0.9
• Qms: 3.9
• Qts: 0.73
• Vas: 2.4 dm³ (0.09 ft³)
• Sd: 51.9 cm² (8.04 in²)
• Xmax (4): 1.73 mm
• Xdamage (5): 6.8 mm
• Mms: 3.9 g
• Bl: 3 N/A
• Le: 0.04 mH
• Mmd: 3.5 g
• Cms: 0.65 mm/N
• Rms: 0.65 kg/s
• Eta zero: 0.26 %
• EBP: 111 Hz

Other details

• Brand: Faital Pro
• Model number: 4FE35-4 | 4FE35
• UPC: 810130951321
• Part number (P/N)Faston terminals - 4 Ohm version: 1004109
• Notes: (1) 2 hours test according to AES 2-1984 Rev. 2003, (2) Maximum power is defined as 3dB greater than nominal power, (3) NBR (Rubber), (4) Xmax = [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3), (5) Maximum excursion before permanent damage

• NOMINAL SPECIFICATIONS || Nominal Diameter : 100 mm (4 in) || Overall Diameter : 129.85/100.5 mm (5.11/3.96 in) || Bolt Circle Diameter : 4.54 in || Baffle Cutout Diameter : 3.60 in || Depth : 1.96 in || Flange and Gasket Thickness : 0.28 in || Net Weight : 1.3 lb || Shipping Box (Single Carton Box - 8 units) : 8.9 x 8.9 x 5.9 in || Shipping Box (Single Carton Box) : 1.9 x 1.9 x 0.74 in || Shipping Weight (8 units) : 11.0 lb || Shipping Weight : 1.38 lb ||
• TECHNICAL PARAMETERS || Nominal Impedance : 4 Ohm || Minimum Impedance : 3.7 Ohm || AES Power Handling (1) : 30 W || Maximum Power Handling (2) : 60 W || Sensitivity (1W/1m) : 91 dB || Frequency Range : 90÷20000 Hz || Voice Coil Diameter : 19 mm (0.75 in) || Winding Material : Al || Former Material : Kapton ||
• TECHNICAL PARAMETERS || Winding Depth : 4.8 mm (0.19 in) || Magnetic Gap Depth : 4 mm (0.16 in) || Flux Density : 1.1 T || Magnet : Ferrite Ring || Basket Material : Steel || Demodulation : Copper Cap || Cone Surround (3) : Half Roll || NET Air Volume filled by Loudspeaker : 0.150 dm^3 (0.005 ft^3) || Spider Profile : 1x constant height waves ||
• THIELE AND SMALL PARAMETERS || Fs : 100 Hz || Re : 3.3 Ohm || Qes : 0.9 || Qms : 3.9 || Qts : 0.73 || Vas : 2.4 dm^3 (0.09 ft^3) || Sd : 51.9 cm^2 (8.04 in^2) || Xmax (4) : 1.73 mm || Xdamage (5) : 6.8 mm || Mms : 3.9 g || Bl : 3 N/A || Le : 0.04 mH || Mmd : 3.5 g || Cms : 0.65 mm/N || Rms : 0.65 kg/s || Eta Zero : 0.26 % || EBP : 111 Hz ||
• Brand : FAITAL PRO || Model Number : 4FE35-4 | 4FE35 || UPC : 810130951321 || PART NUMBER (P/N)Faston Terminals - 4 Ohm Version : 1004109 || NOTES || (1) 2 Hours Test According to AES 2-1984 Rev. 2003 || (2) Maximum power is defined as 3dB greater than nominal power || (3) NBR (Rubber) || (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3) || (5) Maximum excursion before permanent damage
