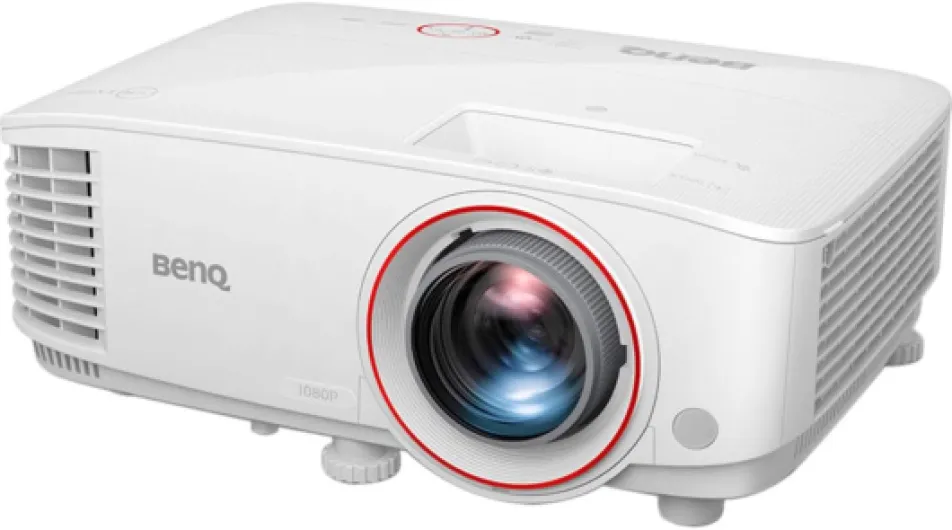

1080p DLP Home Theater Short Throw Projector (TH671ST), 3000 Lumens, Low Input Lag for Gaming, Ambient Light Sensor

Display

• projection system: DLP
• native resolution: 1080p (1920 x 1080)
• resolution support: VGA (640 x 480) to WUXGA_RB (1920 x 1200) *RB = reduced blanking
• brightness (ANSI lumens): 3000 lm
• contrast ratio (FOFO): 10000:1
• display color: 1.07 billion colors
• native aspect ratio: 16:9

Light source

• type: lamp
• wattage: 240 W
• life (normal): 4000 hours
• life (economic): 10000 hours
• life (smarteco): 10000 hours
• life (lampsave): 15000 hours

Optical

• throw ratio: 0.69 ~ 0.83 (100" @ 1.5 m)
• zoom ratio: 1.2x
• lens: F/# = 2.6 - 2.78, f = 10.2 - 12.24 mm
• keystone adjustment: 1D, vertical +/- 40 degrees
• projection offset: 102.5% ± 2.5%
• clear image size (diagonal): 60" ~ 120"
• image size: 30" ~ 300"
• horizontal frequency: 15K ~ 102KHz
• vertical scan rate: 23 ~ 120Hz


• picture modes: bright, vivid tv, cinema, sport, game, user 1, user 2, (3D)
• color wheel segment: RGBYCM
• color wheel speed: 2x (50Hz, 60Hz)
• rec.709 coverage: > 92%

Audio

• speaker: 5W x 1

Interface

• PC (D-sub): 1
• monitor out (D-sub): 1
• HDMI: 2 (HDMI-1: 1.4a, HDMI-2: 1.4a / MHL / HDCP 1.4)
• USB type A: 1 (USB-1: 2.0 / power supply)
• USB type mini B: 1 (service)
• audio in (3.5 mm mini jack): 1
• audio out (3.5 mm mini jack): 1
• RS232 (DB-9 pin): 1
• IR receiver: 2 (front and top)
• security bar: 1

Compatibility

• HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
• video systems: NTSC, PAL, SECAM
• 3D frame sequential: up to 720p 60Hz
• 3D frame packing: up to 1080p 24Hz
• 3D side by side: up to 1080i/p 24Hz
• 3D top bottom: up to 1080p 60Hz

Environment

• power supply: AC 100 to 240 V, 50 / 60 Hz
• typical power consumption: 320 W
• standby power consumption: < 0.5 W
• acoustic noise (typ. / eco.): 33 / 29 dBA
• operating temperature: 0 ~ 40 ℃

Dimension and weight

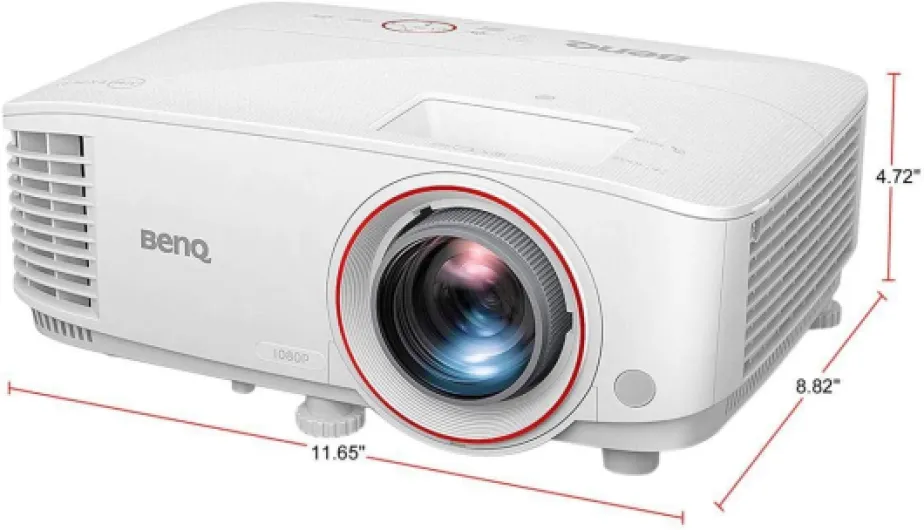

• dimensions (W x H x D): 11.6 x 4.7 x 8.8 in
• net weight: 5.95 lb

Accessories included (standard)

• carton: yes, brown carton
• remote control with battery: yes (RCV013)
• power cord (by region): x1 (1.8 m)
• user manual CD: x1 (27L)
• quick start guide: x1 (18L)
• warranty card (by region): yes
• VGA (D-sub 15 pin) cable: x1 (1.5 m)
• lens cover: yes
• battery: AAA x2
