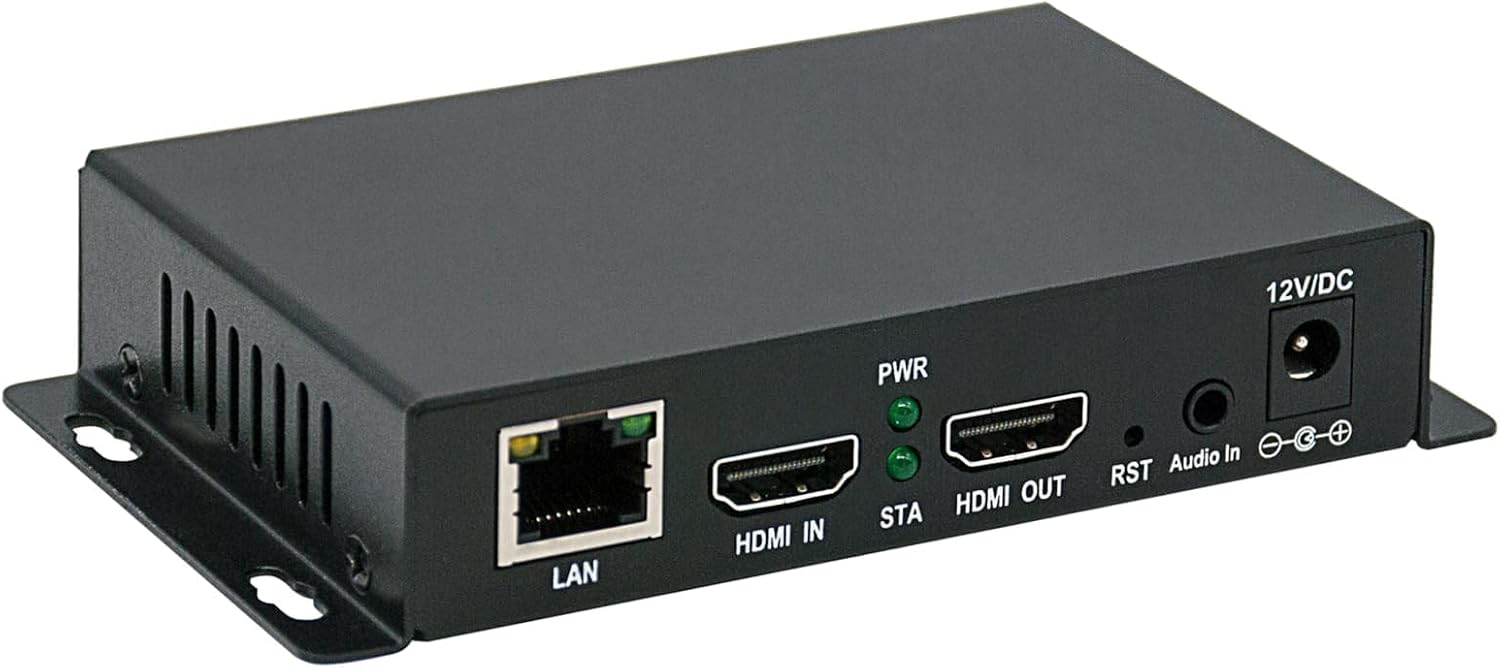

H.265/264/MJPEG Ultra Mini HDMI 1080P Video Encoder with HDMI loopout, HTTP, RTSP, RTMP/RTMPS, SRT, HLS, FLV, Compatible with ONVIF, Multicast IPTV Encoder for YouTube Facebook Twitch Live

• ＋ Supports H.265/264/MJPEG encoding
• ＋ HDMI loopout feature
• ＋ Compatible with ONVIF
• ＋ Multicast IPTV capabilities
• ＋ Live streaming to YouTube, Facebook, Twitch

• 【Upgrade Notice】Please kindly note that this mini video encoder EH1201 has been upgraded to EH1211 from the stock batch after Jul.29th, 2025. The new EH1211 add extra USB and TF card port on the back of the device for you to record RTSP broadcasting video or record from HDMI video source to the external USB disk or TF card. Also, it supports customize cropping and encoding of input signal source video images. For more details, please find details in below webpage. Please note that EH1211 is upgraded both on chips and apperance, so the previous EH1201 can't been upgraded to new EH1211 by firmware.

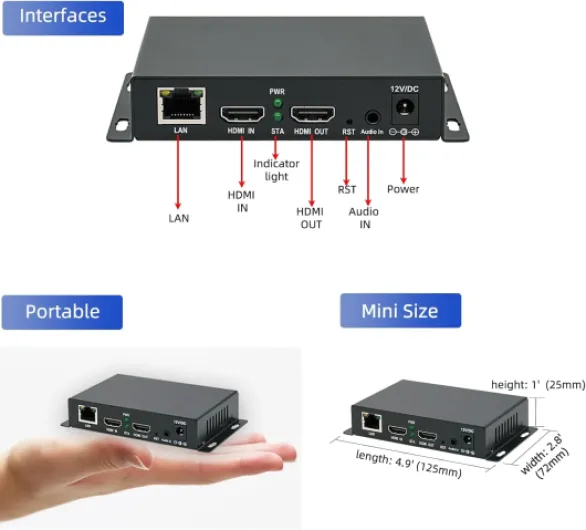

• 【ORIVISION Advantage& Ultra Mini Model】- This ORIVISION ultra mini video encoder has high integration with low cost. Ultra mini size(125x72x25mm) and light weight (200g) of H.265 encoder is perfect for live broadcasting applications with frequent move or tiny device installation space. IP encoder has 1 X HDMI Input and loop-out, 1 X 3.5mm audio input,1 X 3.5mm audio output(new), 1X USB2.0 port(new), 1X TF card port(new). IPTV encoder support audio encoding without video input.
• 【1080P@30HZ Input/Output Resolution & 2 Channel Output】- HDMI encoder supports max 1080P@30 resolution HD input and output. The video encoder for live broadcasting can output 2 channels feeds at the same time. While only 1 channel can reach 1080p output. The H.265/ H.264 encoder supports multiple different protocol feeds output at the same time, but does not support simultaneous output 1080P30.
• 【Multi-Protocols & Software & Platform & Flip Supporting】- Hardware encoder supports protocols including HTTP/HTTPS/RTSP/RTMP/RTMPS/SRT/UDP/RTP/FLS/FLV,is compatible with Onvif protocol. Multicast UDP/RTP. HDMI video encoder supports software like Flashplayer, OBS, VLC player, Vmix..etc. Fit for Youtube, Facebook, Ustream, Livestream, Twitch, Vimeo, Streamspot, Dacast, Tikilive, Netrmedi, etc. This video encoder also supports new function of image rotation and mirror flip. More convenient for live broadcasting.
• 【Powerful OSD Setting】- OSD setting function of the live broadcasting encoder makes it easy for you to add any self-defined text, time and image overlay on your video when output displayed. You may add any text/logo at any position to announce your copyrights with this hevc video encoder.
• 【Free Support and Service】ORIVISION encoder is supported by 20 years’ manufacture experience of video transmission device by our leading technology. Encoder products are backed with a 3-year limited warranty.Support remote technical service, free firmware upgrade.Please feel free to contact us(1,Find your order. 2,Click button "Contact Seller"), we will resolve your question within 24 hours.
