MT-VIKI 8x8 8K UHD HDMI 2.1 Matrix Switcher with Audio De-embedder, 8K@60Hz and 4K@120Hz, EDID, RS232, LAN Port, APP, Web GUI (8 in 8 Out)

• ＋ Supports 8K@60Hz and 4K@120Hz
• ＋ Includes Audio De-embedder
• ＋ 8 inputs and 8 outputs
• ＋ Features EDID management
• ＋ RS232 and LAN Port for control

• MT-VIKI HDMI Matrix Switcher 8x8: It routes up to four 8K HDR HDMI sources to four 8K HDR display devices. Allow all outputs to mirror the same signal or independently route unique input signals to each display for a fully customized HDMI routing matrix
• 8K Resolution: This HDMI matrix 8 in 8 out supports 8K@60Hz, 4K@120Hz, 1080P＠210Hz. Supports HDMI 2.1 standard and HDCP2.2 (and all earlier versions supported). Auto scaling-down scaling on all outputs

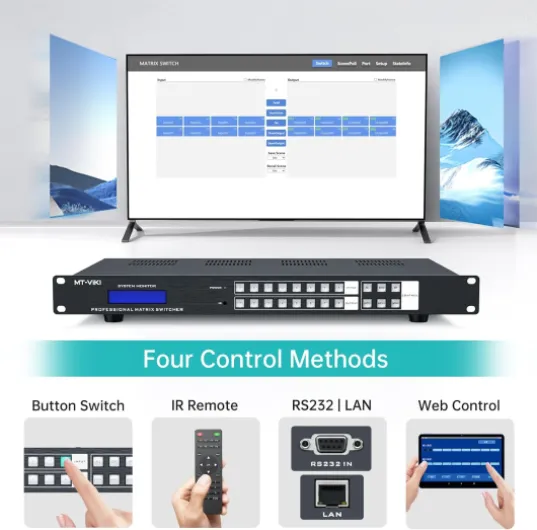

• Switching Methods: Panel buttons, IR remote control, RS232 and LAN port, WEB GUI Control. Supports Audio ARC technology: capable of transmitting high-quality, lossless audio formats such as Dolby Atmos, DTS: X, etc., providing a premium audio experience with synchronized sound and image
• Fits for standard 1U 19" Rack: 8 in 8 out HDMI matrix switcher and splitter, built-with acrylic crystal button and LED backlit. Dimension: 19.0x9.9x1.7inch (483*252*44mm)
• Package Included: 1xHDMI Matrix switch 8x8, 1xRS232 Cable, 1x IR Remote, 1xPower cable & adapter, 1 U-disk for User Manual and Software
• Noted: 1. If you want to reduce the noise of the fan, please disassemble the matrix and change the FB5 bit number of the PCBA four-layer board (12.01.01.0851) to a resistor of 75Ω 2. If after connected, but still no signal, pls try to adjust the EDID arrangement.
