Link Pi ENC8 4K Decoder SRT NDI HDMI Encoder, RTSP/RTMP/HTTP/HLS/H.265 SmartP, 8X 1080P HDMI Input 1x 4K HDMI Output, 4K HD Video Decoder for YouTube Live Broadcast Video Conference (Standard Kit)

• ＋ 4K Output for high-quality video
• ＋ 8 HDMI Inputs for multiple sources
• ＋ Supports multiple protocols (SRT, NDI, RTSP, RTMP, HTTP, HLS)
• ＋ SmartP technology for enhanced performance
• ＋ Ideal for YouTube live broadcasts and video conferences

Product parameters

core performance

• cpu: arm cortex a53 quad-core 1.2ghz 32kb i-cache, 32kb d-cache
• memory: 4gb ddr4
• flash: 8gb emmc

video parameters

• hdmi input: 8-channel hdmi 1.3 supports up to 1080p@60fps
• hdmi output: support up to 4k60
• resolution: 4k30, 1080p, 720p, 1080i, 720i, 1600×1200, 1440×900, 1366×768, 1280×1024, 1024×768, 800×600, 640×480
• encoding format:
  • h.264 baseline profile
  • h.264 main profile
  • h.264 high profile
  • h.265 main profile
  • mjpeg/jpeg baseline
• decoding format: h264, h264, mjpeg
• encoding resolution:
  • main: 4k, 1080p, 720p, 360p
  • sub: 720p, 360p
• frame rate: 1~60 adjustable
• multiple reference frames: support smartp and dualp
• maximum bit rate: 20mbps
• bit rate control: cbr/vbr/avbr/fixqp/qpmap

audio parameters

• input interface: hdmi, 3.5mm line-in, audio can be used simultaneously
• output interface: hdmi, 3.5mm line-out, audio can be used simultaneously
• sampling rate: 48k, 44.1k, 32k, 16k, 8k
• encoding format: aac, mp3, mpeg2, pmca, pmcu

network parameters

• wired interface: 10/100/1000m rj45 network port x2
• wifi: optional external wifi module
• 4g/5g: support ( e8372, linkpi 5gcpe)
• transport protocol: rtsp, rtmp, http, hls, udp, unicast, multicast
• onvif: support
• srt: support
• ndi: support
• gb28181: support

file storage

• storage interface: usb, built-in space (about 6g available)
• file recording format: mp4, ts, flv, mov, mkv, avi

basic parameters

• power supply: dc 12v5a
• power: ＜20w
• operating temperature: 0~70°c
• size: 260x130x40 (mm length x width x height, can be expanded to 19 inches with accessories)
• weight: 1.27kg

software features

• basic functions: web configuration, parameter hot update, firmware upgrade, network settings, password management
• special effects superposition: picture-in-picture, 4-split screen, 9-split screen, custom
• video mixing: logo, watermark, subtitle, scrolling subtitle, mosaic, timestamp
• resource management: customize fonts, upload watermark logo image

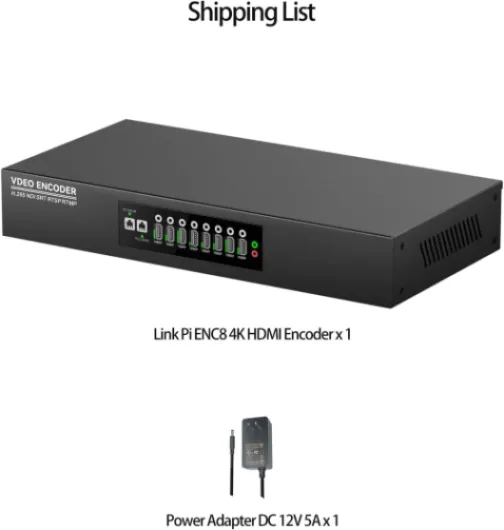

Package content

• enc8 encoder bundle x 1

Technical support

please click "waypondev" and ask a question.

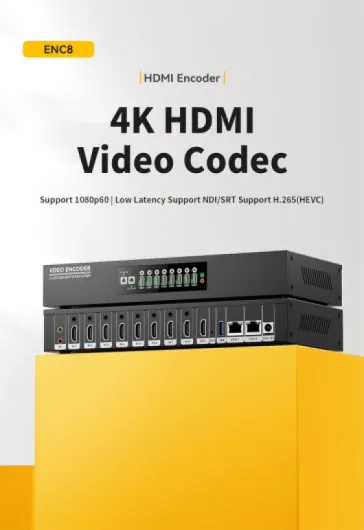

• [8-channel HD Video input] ENC8 4K 1080p codecs is equipped with 8xHDMI1.3 input ports (1080p 60fps) and 1xHDMI output port (4K 60fps). It supports multiple transmission protocols, including RTSP, RTMP, HTTP, HLS, UDP, unicast and multicast, as well as ONVIF, SRT, NDI, GB28181, SmartP and DualP.
• [Full HD Resolution] ENC8 4K 1080p codecs supports resolutions including 4K30, 1080P, 720P, 1080i, 720i, 1600×1200, 1440×900, 1366×768, 1280×1024, 1024×768, 800×600 and 640×480. It also supports special effects editing, directing, watermark subtitles, file video mixing, video rotation and other functions, and can also realize mobile phone control, one-click remote assistance, game video live broadcast, online classes and other functions.
• [High Performance] ENC8 4K 1080p codecs has a high-performance CPU onboard, equipped with ARM Cortex A53 quad-core 1.2Hz 32KB I-Cache and 32KB D-Cache, memory: 4GB DDR4 flash memory: 8GB eMMC, HD video interface. Gigabit Ethernet: 10/ 00M/1000M RJ45 port x 2.
• [Support Mainstream live broadcast platforms] ENC8 4K 1080p codecs is compatible with most Internet video platforms and mainstream media websites, and can realize multi-platform real-time live broadcast, such as YouTube Live, Facebook Live, Twitch and Twitter and other online video platforms.
• [WiFi/4G/5G Module Support] ENC8 4K 1080p codecs can support WiFi/4G/5G functions through the USB interface expansion, and can also realize wireless transmission, mobile live broadcast, multi-screen real-time director switching and other functions. It can be automatically connected with third-party software such as vMix, OBS, XSplit, NDI Tools, etc.
• [Rich Peripherals] ENC8 4K 1080p codecs supports a wide range of peripherals, including TV set-top boxes, laptops, cameras, SLR cameras, network monitoring, USB cameras, mobile phones, game consoles, etc., and is widely used in network live broadcast, IPTV system, wireless transmission, teaching recording and broadcasting, video conferencing, monitoring and other fields.
