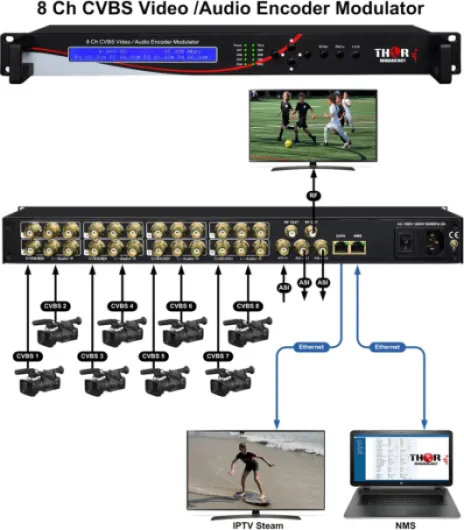

8 Ch CVBS Composite Encoder & IPTV Server

• ＋ 8 Channels for multiple inputs
• ＋ CVBS Compatibility for standard video
• ＋ IPTV Server functionality included
• ＋ Real-time Streaming capability
• ＋ Easy Setup and configuration

Highest density 8 channel broadcast encoder

• SD analog CVBS composite video inputs
• Encodes programs to CBR or VBR H.264 transport streams on ASI and IP outputs
• Features dual hot stand by power supplies to ensure system uptime and reliability
• IP output is in standard IPTV format as UDP, RTP, or RTSP unicast or multicast with IGMP support
• Both individual SPTS single program streams and an MPTS multi program stream are provided on unique IP streams
• All PIDs and program information values can be configured to customize the encoded programs names and IDs
• Accepts any SD analog PAL or NTSC composite video inputs

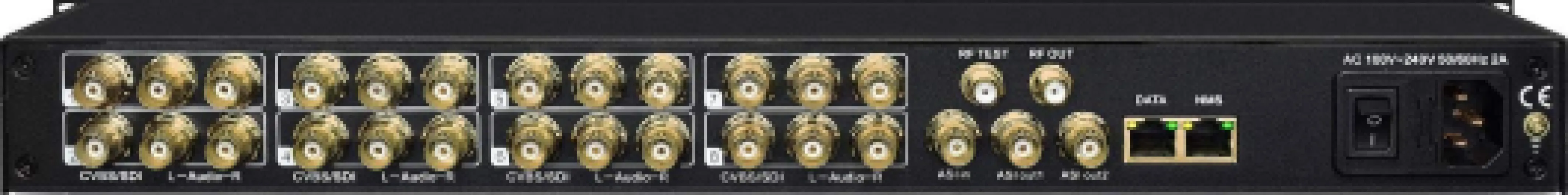

• Mirrored ASI outputs are provided for added flexibility when integrating with other broadcast equipment such as modulators or decoders
• Ideally suited as a high density ingest & encoding solution for broadcasters needing to transport, distribute, or archive live SD analog video sources

• 8 Ch Analog CVBS Broadcast video H.264 encoder & multiplexer
• Each encoder individually configured and adjusted
• Video processing and adjustment settings
• Multiple output formats including RTSP streaming
• ASI output provided for broadcasting applications
