Understanding HDMI QAM modulators
What is an HDMI QAM Modulator?
An HDMI QAM modulator is a device that converts HDMI video and audio signals into a digital RF signal, which can be distributed over coaxial cable to multiple TVs or projectors. QAM stands for Quadrature Amplitude Modulation, a standard used in digital cable television in the United States. By using a modulator, you can broadcast high-definition content from sources like Blu-ray players, set top boxes, or streaming devices to different rooms or zones without running multiple HDMI cables.
How Does It Work?
The process starts with an HDMI input, such as a media player or stb satellite receiver. The modulator takes this HDMI video and audio signal and encodes it into a digital format, often supporting Dolby Audio and other advanced codecs. This digital signal is then modulated onto a specific RF channel using QAM or ATSC standards, making it compatible with most modern TVs and projectors that have a digital tuner. The output is sent through coax cable, allowing for easy integration with existing CATV systems.
Key Features to Know
- HDMI Input and Output: Accepts HDMI sources and delivers a digital RF output for broad compatibility.
- Channel Selection: Lets you assign a unique channel number, so your projector or TV can tune in easily.
- Multiple Standards: Many modulators support QAM, ATSC, and DVB, making them versatile for different regions and setups.
- Digital Converter: Converts HDMI signals to a format suitable for coax distribution, minimizing signal loss over long distances.
- Verified Purchase Feedback: Look for products with strong user reviews and verified purchase status for reliability.
Why Use a QAM Modulator with a Projector?
Using a QAM modulator with your home theater projector allows you to distribute high-quality video audio signals across your home without the need for multiple HDMI cables. This is especially useful in larger homes or setups where running HDMI cables is impractical. Brands like Thor Broadcast offer modulators with robust features and positive feedback from users in the United States.
For more details on selecting the right cables for your setup, check out this guide on choosing the right HDMI cable for your home theater speakers.
Benefits of using an HDMI QAM modulator with a projector
Unlocking More Viewing Options
Using an HDMI QAM modulator with your home theater projector opens up a world of possibilities. Instead of being limited to the built-in HDMI input or a single device, a QAM modulator lets you broadcast video and audio from multiple sources over your existing coax cable network. This means you can distribute content from a set top box, STB satellite receiver, or digital converter to different rooms or projectors, all while maintaining digital quality.
Seamless Integration with Modern and Legacy Systems
Many home theater setups include both new and older equipment. HDMI QAM modulators bridge this gap by converting HDMI output into a digital signal compatible with CATV systems. This allows you to send high-definition video and Dolby audio to your projector, even if your home uses coax cabling. Brands like Thor Broadcast offer modulators that support various standards, including QAM ATSC and DVB, making them versatile for different channel and broadcast needs.
Enhanced Audio and Video Quality
With a verified purchase of a quality HDMI modulator, users often report improved video audio synchronization and clarity. Digital modulators are designed to minimize signal loss, so your projector receives crisp images and clear sound. This is especially important for home theaters aiming for a cinema-like experience. Some modulators even support multiple ATSC channels, letting you switch between sources without losing quality.
Centralized Control and Flexibility
One of the biggest benefits is the ability to manage all your video sources from a single location. Whether you want to broadcast a movie night across several rooms or just simplify your setup, a QAM modulator makes it easy. Feedback from users in the United States highlights how this approach reduces cable clutter and streamlines the viewing experience.
Further Reading
For more on optimizing your home theater connections, check out this guide on understanding the role of phono cables in home theater projectors.
Setting up your HDMI QAM modulator for projector use
Connecting Your HDMI QAM Modulator to the Projector
To get started, make sure your HDMI QAM modulator and projector are both powered off. Connect the HDMI output from your video source—such as a set top box, Blu-ray player, or streaming device—to the HDMI input on your modulator. Use a high-quality HDMI cable to ensure stable video and audio transmission. Next, link the coax output of the modulator to your projector’s RF input or to your home’s CATV distribution system, depending on your setup. This step is crucial for distributing digital video and audio signals across multiple channels.
Configuring Channel and Broadcast Settings
Access the modulator’s menu, usually via a front panel or web interface. Assign a unique digital channel number for your projector to receive. For installations in the United States, select the correct QAM ATSC or DVB standard, as required by your projector or TV tuner. Some modulators, like those from Thor Broadcast, offer presets for popular standards. Double-check that the audio format matches your projector’s capabilities—Dolby Audio support can enhance your experience if available.
Testing and Fine-Tuning Video Audio Output
Power on your devices. Use your projector’s tuner to scan for the assigned channel. Once detected, verify that the video audio quality meets your expectations. If you notice issues, such as missing audio or pixelated video, review the modulator’s settings and cable connections. For optimal sound, consider integrating a dedicated center speaker; our guide on enhancing your audio experience can help you get the most from your setup.
- Always use verified HDMI and coax cables for reliable connections.
- Label your channels clearly, especially if using multiple modulators or distributing to several rooms.
- For feedback or persistent issues, consult your modulator’s manual or reach out to the manufacturer’s support.
By following these steps, you can broadcast high-quality digital video and audio from your HDMI source to your home theater projector, making the most of your QAM modulator investment.
Troubleshooting common HDMI QAM modulator issues
Common Issues and Quick Fixes
When using an HDMI QAM modulator with your home theater projector, a few technical hiccups can arise. Here are some of the most frequent problems and practical solutions:
- No video or audio output: Double-check that your HDMI input is securely connected to the modulator and that the projector is set to the correct channel. Sometimes, a simple cable reseat or switching HDMI ports can resolve the issue.
- Poor picture quality: If the video appears pixelated or colors look off, confirm your modulator’s output resolution matches your projector’s native resolution. Also, inspect your HDMI cable for damage or try a different cable, especially if you’re using long runs.
- Audio dropouts: Make sure the modulator supports the audio format you’re using, such as Dolby Audio. If you’re not getting sound, check the audio settings on both the modulator and projector. Some modulators require manual selection between stereo and surround sound.
- Channel mapping issues: If your projector or set top box isn’t finding the correct channel, rescan for digital channels. Ensure the QAM modulator is set to a unique channel number that doesn’t conflict with existing CATV or ATSC channels.
- Feedback or interference: Coax cables running near power lines or other electronics can introduce noise. Use high-quality, shielded coax and keep it away from potential sources of interference.
Advanced Troubleshooting Tips
- Firmware updates: Some modulators, like those from Thor Broadcast, offer firmware updates to improve compatibility and performance. Check the manufacturer’s website for updates, especially if you experience persistent issues.
- Digital converter settings: If you’re using a digital converter or STB satellite receiver, ensure it’s compatible with your modulator’s output format (QAM, DVB, or ATSC). Mismatched formats can prevent proper signal decoding.
- Verified purchase support: If you’ve recently purchased your modulator HDMI device, reach out to the manufacturer’s support team with your verified purchase details. They can provide tailored troubleshooting steps or replacement options if hardware is faulty.
When to Seek Professional Help
If you’ve tried the above steps and still face issues with your HDMI QAM modulator setup, consider consulting a professional installer. They can test your coax modulator, HDMI video connections, and overall CATV system for faults. This is especially helpful for complex home theater setups with multiple channels or advanced digital audio requirements.
Optimizing picture and sound quality
Fine-tuning your projector's video and audio output
Getting the best picture and sound from your HDMI QAM modulator setup is all about careful adjustment. Start by checking your HDMI input and output connections. Make sure the HDMI cable is firmly connected to both the modulator and your projector. If you’re using a digital converter or a coax modulator, verify that the coax cable is properly attached to the correct channel input on your CATV or set top box.Adjusting video settings for clarity
Most HDMI modulators, including popular models from Thor Broadcast, allow you to tweak video resolution and output format. Set your modulator to match your projector’s native resolution—this helps avoid scaling issues and ensures sharp images. If your projector supports 1080p, select this setting on the modulator. For QAM ATSC or DVB systems, make sure the channel output matches your region’s digital standards (for example, ATSC channels in the United States).- Check the modulator’s video output settings for compatibility with your projector
- Use the modulator’s on-screen menu or web interface to adjust brightness, contrast, and color
- Test different HDMI cables if you notice signal loss or flickering
Optimizing audio for immersive sound
Audio quality can make or break your home theater experience. Many HDMI QAM modulators support Dolby Audio or similar formats. Confirm that your modulator and projector both support the same audio output type. If you’re using an external sound system or AV receiver, connect it to the HDMI output or use a digital audio output if available. Some modulators allow you to select between stereo and surround sound—choose what best fits your setup.- Ensure the audio output format matches your sound system’s capabilities
- If using a set top box or stb satellite receiver, check its audio settings as well
- Test different audio cables if you hear static or distortion
Reducing interference and improving signal quality
Interference on digital channels can cause dropouts or degraded video audio quality. Use high-quality, verified HDMI and coax cables. Keep cables as short as possible and avoid running them parallel to power cords. If you’re broadcasting to multiple channels, make sure your QAM modulator is not overloading your cable system. Thor Broadcast and other verified purchase modulators often include feedback indicators—use these to monitor signal strength and adjust as needed.| Component | Optimization Tip |
|---|---|
| HDMI Modulator | Update firmware for latest features and bug fixes |
| Projector | Calibrate picture settings for your room lighting |
| Audio System | Match audio output format to your speakers |
Regular maintenance and feedback
After setup, periodically check for firmware updates for your modulator HDMI device. Reading verified purchase reviews can provide insights into common issues and solutions for your specific model. If you encounter persistent problems, consult the manufacturer’s support or community forums for feedback from other users. Keeping your system updated and well maintained ensures the best possible home theater experience.Choosing the right HDMI QAM modulator for your needs
Key factors when comparing HDMI QAM modulators
When you’re ready to purchase an HDMI QAM modulator for your home theater projector, it’s important to focus on features that match your setup and expectations. The market offers a range of modulators, from basic HDMI to coax models to advanced digital modulators supporting multiple channels and formats like ATSC or DVB. Here are some points to help you make a confident choice:
- Compatibility: Ensure the modulator supports your projector’s HDMI input and the type of signal you need (QAM, ATSC, DVB). If you’re in the United States, QAM and ATSC are most common for digital broadcast over coax.
- Video and audio quality: Look for modulators that support full HD video output and Dolby Audio if you want the best experience. Check for feedback from verified purchase reviews to see real-world performance.
- Number of channels: Some modulators can broadcast multiple channels simultaneously. If you plan to distribute video audio to several rooms or devices, consider a multi-channel model.
- Inputs and outputs: Confirm the device has the right HDMI input and output ports, as well as coax or CATV connections for your cable setup. Some units also offer digital converter features for legacy equipment.

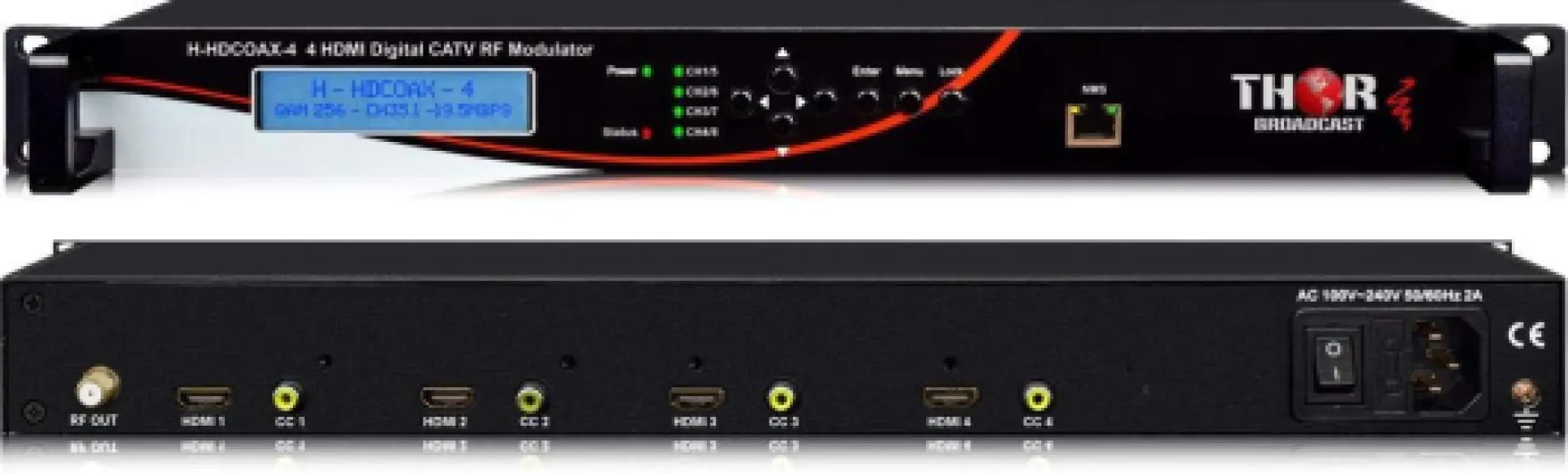

- Brand reputation: Brands like Thor Broadcast are known for reliable modulators. Look for products with strong support and clear documentation.
- Ease of setup: Choose a modulator with straightforward configuration, especially if you’re connecting to a set top box, stb satellite, or integrating with existing CATV infrastructure.
Quick comparison table
| Feature | Basic HDMI QAM Modulator | Advanced Digital Modulator |
|---|---|---|
| Supported Channels | 1 | Multiple (QAM, ATSC, DVB) |
| Video Output | 1080p | Up to 4K |
| Audio Support | Stereo | Dolby Audio, multi-channel |
| Inputs | HDMI | HDMI, coax, digital |
| Best For | Single projector, simple setups | Whole-home, commercial CATV, multiple atsc channels |
Final considerations before you buy
Before making your purchase, check for verified purchase feedback and ensure the modulator is compatible with your projector and other equipment. If you plan to expand your system or broadcast to several rooms, invest in a model with more channels and robust digital converter options. Reliable brands like Thor Broadcast offer strong support and documentation, which can make setup and troubleshooting much easier. Remember, the right HDMI QAM modulator will help you get the most from your home theater projector, delivering crisp video and immersive audio across your chosen channels.
